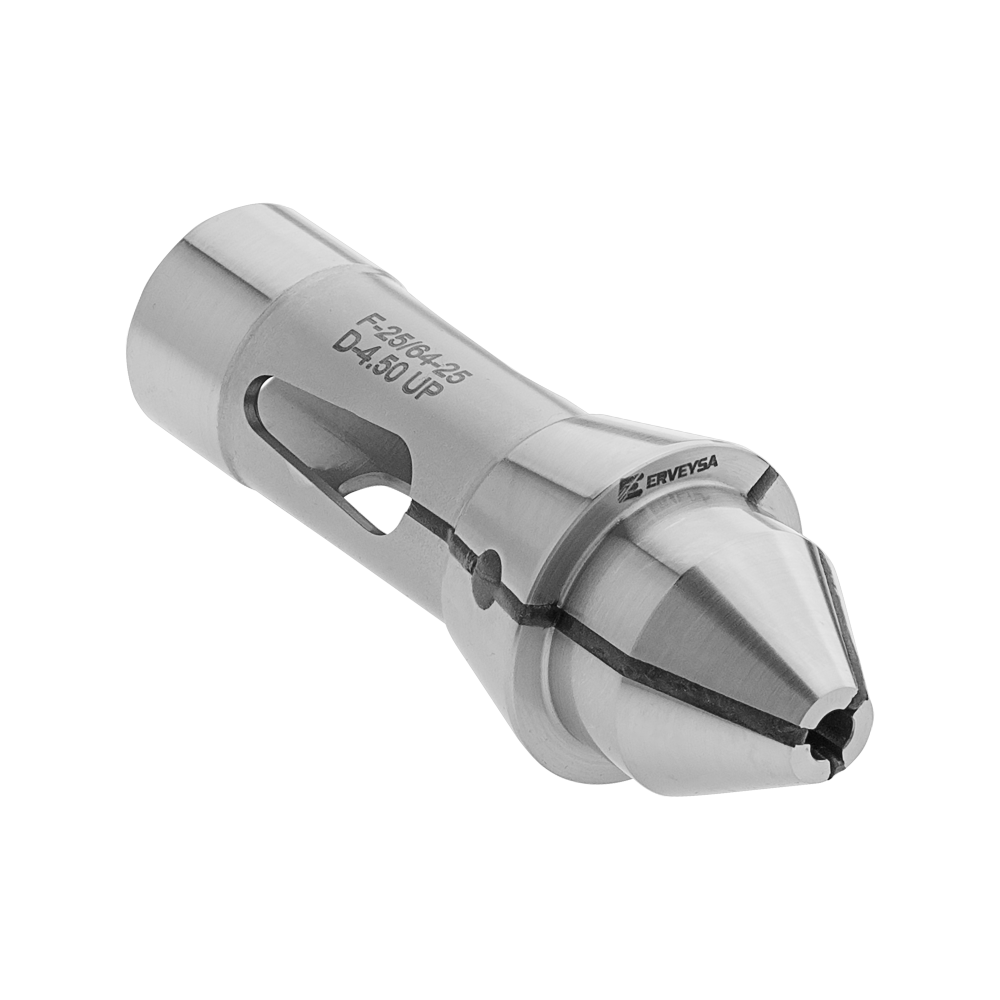

Long Nose Collets with Internal Thread

Long Nose Collets with Internal Thread

Grinding long nose collets with internal thread is crucial for achieving high-quality and reliability wheel grinding. Our Grinding machines provide a diverse range of preparation units, offering various options to optimally tailor the dressing process to the specifications unique to the workpiece, tool or material.

Category: Collets

Description

Grinding long-nose collets is crucial for achieving high-quality and reliability wheel grinding. Our Grinding machines provide a diverse range of preparation units, offering various options to optimally tailor the dressing process to the specifications unique to the workpiece, tool or material.

Long Nose Collets with Internal Thread in Application

long nose collets with internal thread

Specifications

Code	DIN Code	Ø d [mm]	A [mm]	B [mm]	L [mm]	K [degree]	G (Thread)
F20	DIN138E	20	28	21	67	16	M18x1
F25	DIN145E	25	35	27	77	16	M22x1
F48	DIN173E	48	60	50	94	15	M43x1
F66	DIN185E	66	84	73	110	15	M61x1
