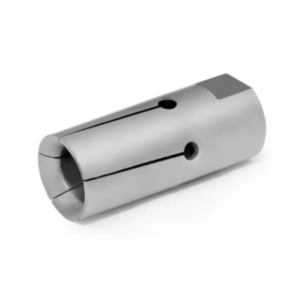

Each chuck encompasses a holding capacity within a specific range, and their provision aligns with the recommendations provided by the respective Bar feeder manufacturers.
Crafting Pin Type with precision and excellence is a hallmark of our manufacturing capabilities.
Code | Guiding Dia | Length | Bore Dia | Hole Dia | Range | |
---|---|---|---|---|---|---|
Ø A | L | Ø B | Ø H | Ø Min | Ø Max | |
BL1501 | 15 | 55 | 10 | 6 | 3 | 13 |
BL1506 | 15 | 40 | 11 | 6 | 3 | 13 |
BL1508 | 15 | 50 | 11 | 6 | 3 | 13 |
BL1510 | 15 | 55 | 7 | 2 | 2 | 13 |
BL1603 | 16 | 65 | 11 | 6 | 3 | 14 |
BL1605 | 16 | 40 | 11 | 6 | 3 | 14 |
BL1701 | 17 | 55 | 7 | 2 | 13 | 15 |
BL1702 | 17 | 45 | 11 | 6 | 5 | 15 |
BL1801 | 18 | 40 | 11 | 6 | 3 | 16 |
BL1902 | 19 | 57 | 10 | 6 | 3 | 17 |
BL1904 | 19 | 57 | 10 | 2 | 3 | 17 |
BL1907 | 19 | 40 | 11 | 6 | 3 | 17 |
BL2005 | 20 | 56 | 10 | 6 | 3 | 17 |
BL2006 | 20 | 65 | 14 | 8 | 3 | 17 |
BL2202 | 22 | 65 | 14 | 8 | 18 | 19 |
BL2502 | 25 | 65 | 20 | 8 | 18 | 22 |
BL2503 | 25 | 76 | 16 | 8 | 3 | 22 |
BL3002 | 30 | 65 | 20 | 8 | 23 | 27 |
BL3205 | 32 | 65 | 20 | 8 | 28 | 29 |
BL3206 | 32 | 76 | 16 | 8 | 23 | 29 |
BL3401 | 34 | 90 | 20 | 8 | 18 | 31 |
BL3503 | 35 | 65 | 20 | 8 | 30 | 32 |
