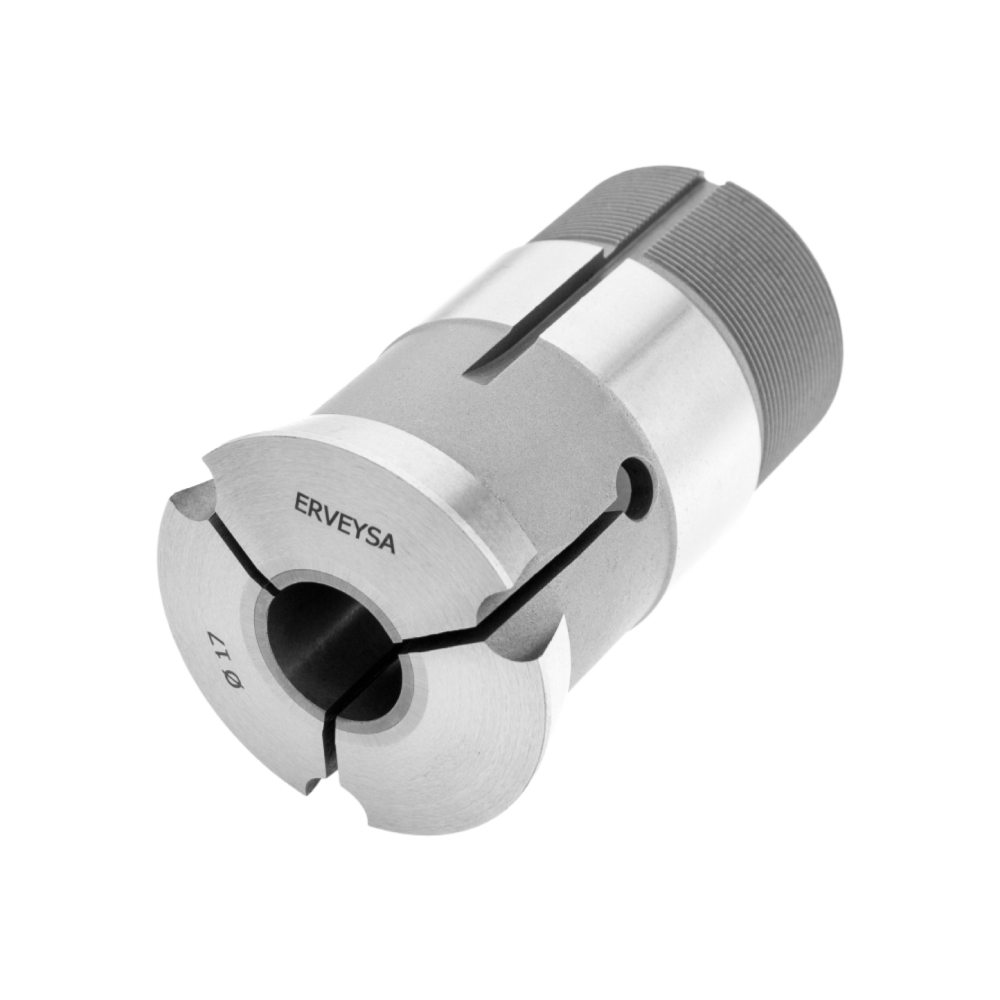

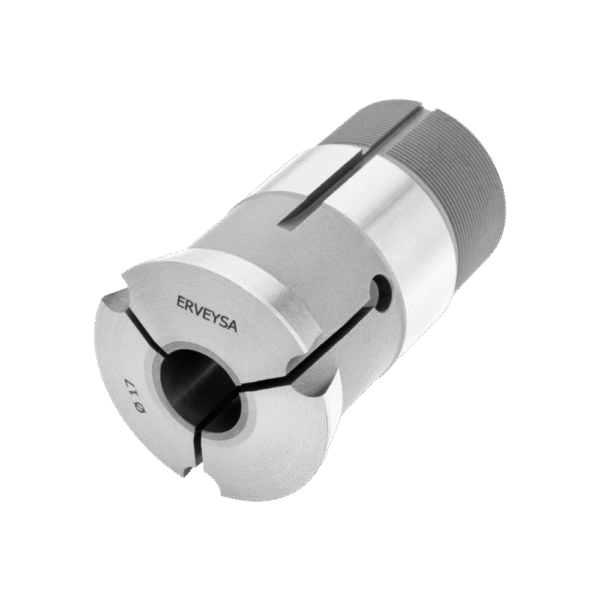

Carbide Guide Bushes (Adjustable Guide Bushes) are one of the pivotal products in Erveysa’s pursuit of precision and reliability in industrial manufacturing. These specialized components are designed to ensure accurate guidance of delicate workpieces and deliver high levels of precision throughout the machining process.
Equipped with carbide tips, these guide bushes adhere to Erveysa’s quality standards, ensuring high durability and longevity. Additionally, options like extended guide length are available to cater to specific needs.
Erveysa’s carbide guide bushes are an indispensable component for enhancing the precision, reliability, and production quality of industrial facilities and CNC machines. These products play a significant role in meeting the accuracy and precision requirements within industrial manufacturing processes.
Carbide Guide Bushes in Application
The carbide guide bushes serve as workpiece guides, manually adjustable to match the guide diameter through the adjusting nut. Our standard guide bushes come with a carbide insert, ensuring extended durability and superior wear resistance. Additionally, for specialized needs, extended guide length options are available for specific applications.
Specifications
| Code1 | Code2 | Code3 | ø d [mm] | ø A [mm] | L [mm] | K [degree] | G | F min. – max. [mm] | ||
 |  |  | ||||||||
| T221 | B301 | 450.001 | 21 | 24 | 57,5 | 12 | M18x1 | 3,0 – 13,0 | 3,0 – 9,0 | 4,0 – 11,0 |
| I354 | J7A | 13.001 | 22 | 29 | 68 | 16 | M19x1 | 2,0 – 14,5 | 3,0 – 10,0 | 4,0 – 12,5 |
| F391 | J7AR | 39.001 | 22 | 29 | 68 | 16 | M22x1 | 3,0 – 16,5 | 3,0 – 11,5 | 4,0 – 14,0 |
| F605 | B238 | 61.002 | 24 | 29,5 | 61 | 30 | M24x1 | 2,0 – 17,0 | 3,0 – 12,0 | 4,0 – 14,5 |
| TD26 | 99.001 | 26 | 29 | 77 | 16 | M25x1 | 2,0 – 19,0 | 3,0 – 13,0 | 4,0 – 16,0 | |
| T223 | B261 | 22.001 | 28 | 34 | 82 | 16 | M25x1 | 3,0 – 20,0 | 3,0 – 14,0 | 3,0 – 17,0 |
| T223-B | 28 | 34 | 82 | 16 | M27x1 | 22,0 | ||||
| I357 | B260 | 18.001 | 28 | 38 | 81 | 30 | M25x1 | 3,0 – 20,0 | 3,0 – 14,0 | 4,0 – 17,0 |
| I357-B | 28 | 38 | 81 | 30 | M27x1 | 22,0 | ||||
| B230 | 30 | 35 | 59 | 16 | M30x1 | 3,0 – 23,0 | INFO | INFO | ||
| T227 | B227 | 451.001 | 34 | 41 | 87,5 | 10 | M34x1 | 3,0 – 26,0 | 3,0 – 18,0 | 4,0 – 22,5 |
| T229 | J9 | 28.001 | 42 | 49 | 82 | 16 | M40x1 | 4,0 – 32,0 | 3,0 – 22,5 | 4,0 – 27,5 |
| TD32 | 42 | 48 | 82 | 20 | M40x1 | 4,0 – 32,0 | 3,0 – 22,5 | 4,0 – 27,5 | ||
| ML36 | 44 | 51 | 82 | 16 | M42x1 | 10,0 – 35,0 | INFO | INFO | ||
| FST38 | 48 | 54 | 82 | 16 | M46x1 | 10,0 – 38,0 | INFO | INFO | ||
| FSL38 | 46 | 53 | 82 | 16 | M45x1 | 10,0 – 38,0 | INFO | INFO | ||
| T249 | B240 | 496.001 | 48 | 54 | 81 | 10 | M46x1 | 10,0 – 38,0 | INFO | INFO |
| B236 | 48 | 56 | 81 | 30 | M48x1,25 | 10,0 – 38,0 | INFO | INFO | ||
